current position:IBC Tank butterfly valve(DN80)

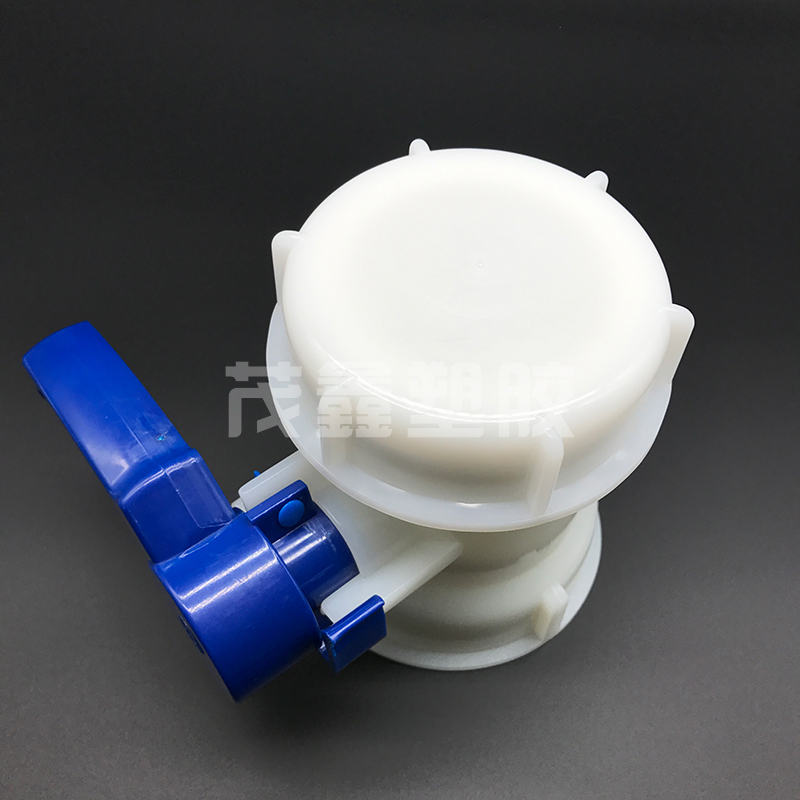

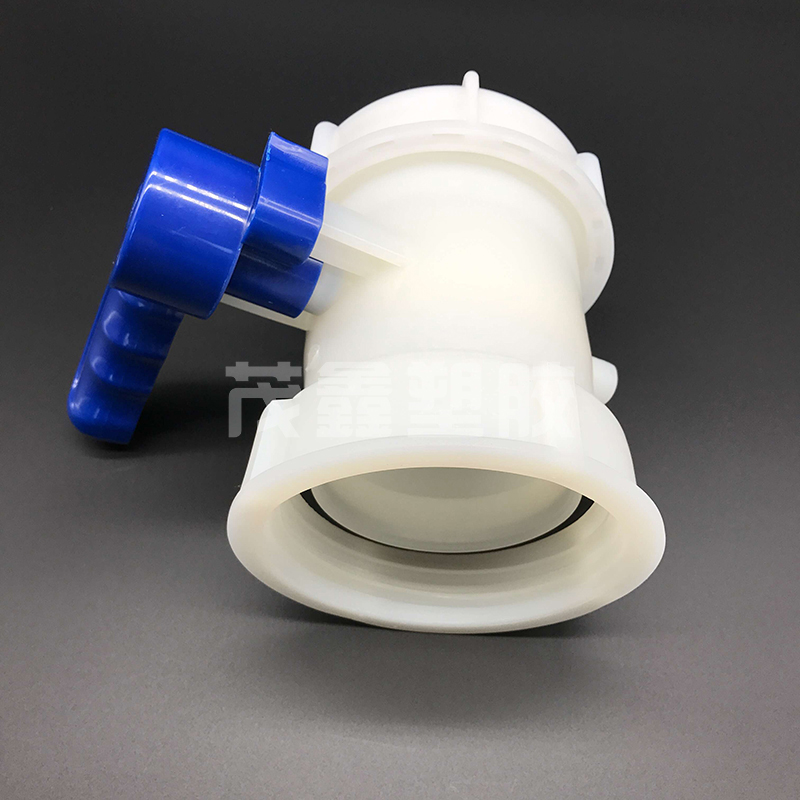

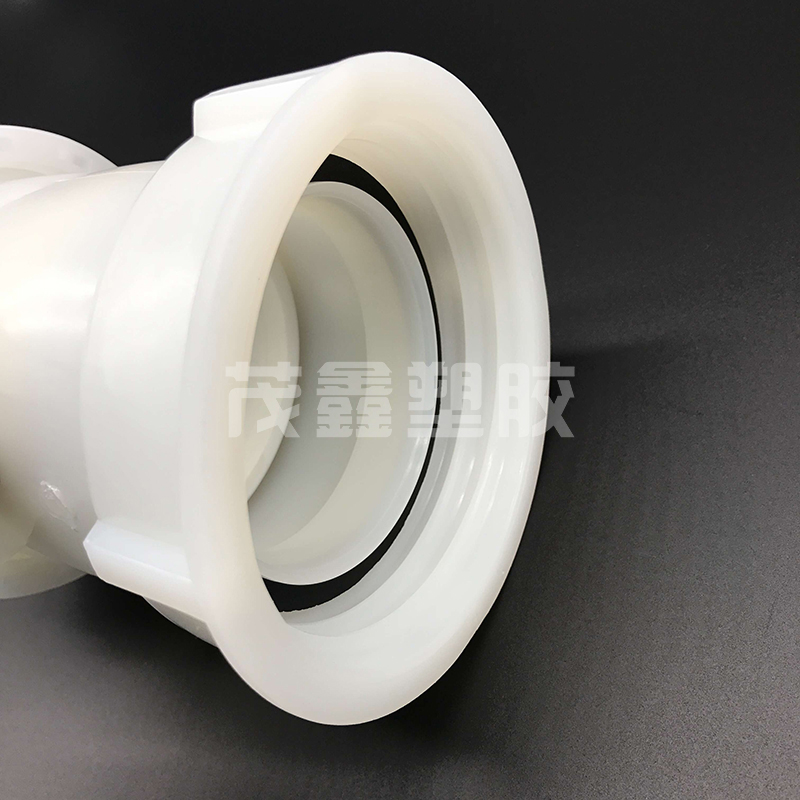

IBC Tank butterfly valve(DN80)

Reading:556Second-rate Issuing time:2021-10-11

IBC Tank butterfly valve(DN80)

One-piece butterfly valve



model

Interface inner diameter

(De)mm

Drainage port diameter

(DN)mm

Drain port thread

Body color

DN40

62

59

Coarse thread

white

DN50

75

59

Coarse thread

white

DN80

100

96

Coarse thread

white





Main parts

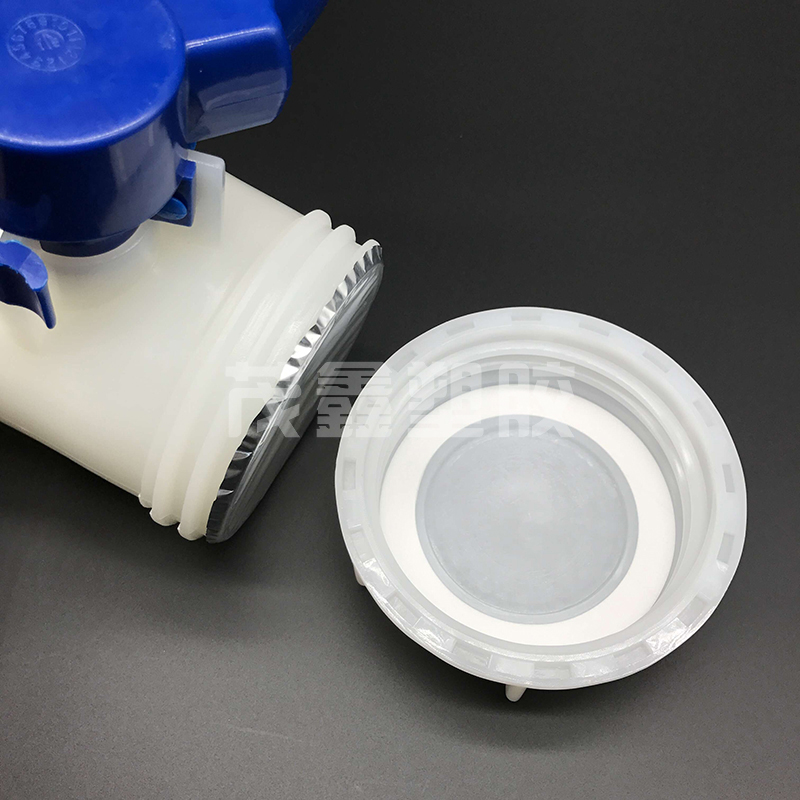

Drainage end belt

Aluminum foil sealing

Body material is imported

High density polyethylene (HDPE)



※ Seal ring selection

Sealing ring: EPDM



 ※How to use and precautions

(1) The user selects the valve thread according to different needs

(2) The installation can not be used too hard, the force is even, the torque reaches the standard, and the force is prevented from being too strong.

(3) Keep it safe to prevent exposure
